Binho Supernova
Connection to the Test Circuit
The Binho Supernova Multi-Protocol USB Host Adapter features an array of connectors including an I2C qwiic 4-pin port, a versatile 2x15 pins connector for I2C/UART/SPI/GPIO functions, and a duo of I3C dedicated 10-pin ports segmented for low and high voltage.
Pinout Guide

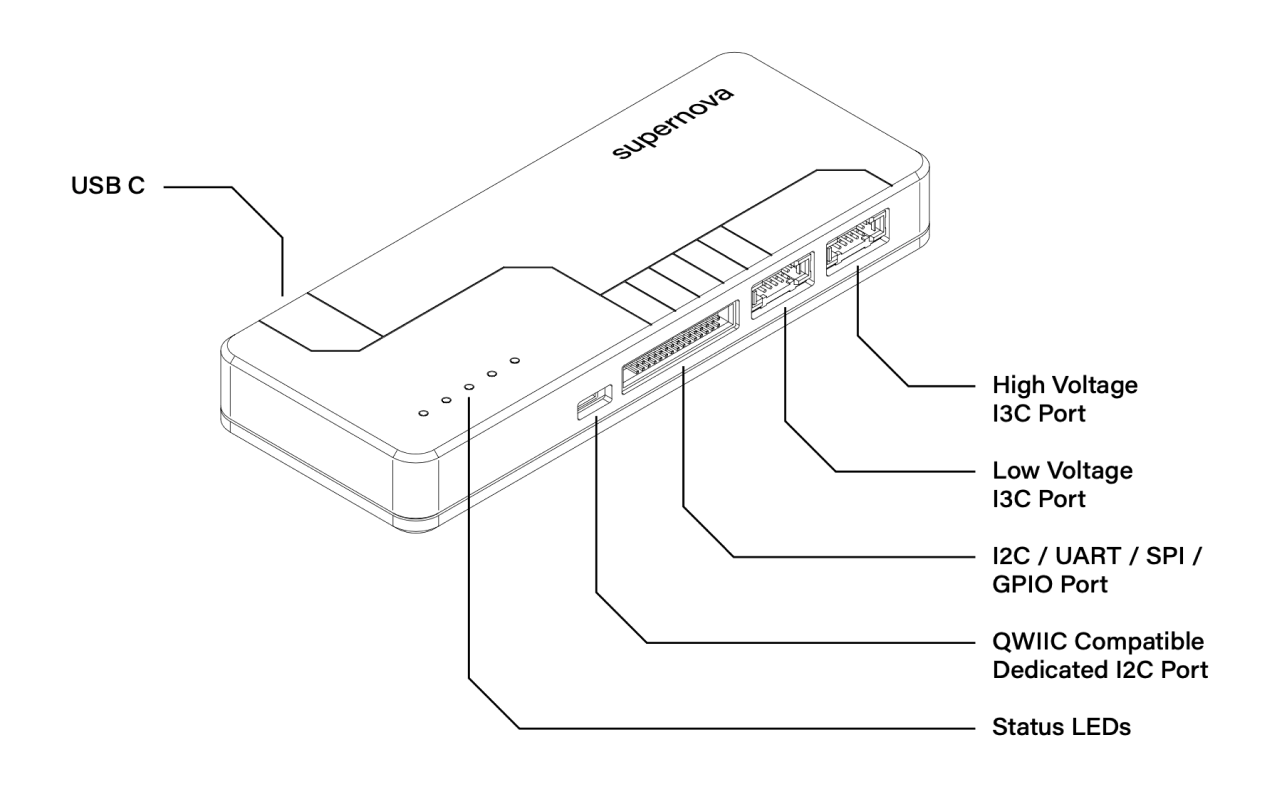

The figure below shows the connector pinout and channel functions:
QWIIC I2C Port
1 - GND | 2 - VTARGET | 3 - SDA | 4 - SCL |
I2C / UART / SPI / GPIO Port
I2C
1 - SCL | 2 - GND | 3 - SDA | 4 - GND |
UART
5 - RX | 6 - GND | 7 - TX | 8 - GND |
9 - RTS | 10 - GND | 11 - CTS | 12 - GND |
SPI
13 - MOSI | 14 - GND | 15 - MISO | 16 - GND |
17 - CLK | 18 - GND | 19 - CS 0 | 20 - CS 1 |
21 - CS 2 | 22 - CS 3 |
GPIO
23 - GPIO 1 | 24 - GPIO 2 | 25 - GPIO 3 | 26 - GPIO 4 |
27 - GPIO 5 | 28 - GPIO 6 | 29 - VTARGET | 30 - AIN |
Low Voltage I3C Port
1 - VTARGET | 2 - DETECT | 3 - VTARGET | 4 - GND |
5 - VTARGET | 6 - GND | 7 - SCL | 8 - GND |
9 - SDA | 10 - GND |
High Voltage I3C Port
1 - VTARGET | 2 - DETECT | 3 - VTARGET | 4 - GND |
5 - VTARGET | 6 - GND | 7 - SCL | 8 - GND |
9 - SDA | 10 - GND |
Now you're ready to begin interacting with the device. See the following QuickStart Guides in this section to learn how to interact with the device via your preferred interface.
Examples of circuit setups
Below are shown two examples of circuit setups where the Binho Supernova host adapter is being used to interact with I3C targets. This illustrates how simple can be to implement a hardware setup and start rapidly to test/develop devices.
