  1. Getting Started
  2. Hardware Setup

Binho Nova

PreviousHardware SetupNextBinho Supernova

Last updated 1 year ago

Connection to the Test Circuit

The Binho Nova Multi-Protocol USB Host Adapter features an integrated wire harness terminated with a 1.27mm pitch 2x5 IDC Connector. This harness contains the 5 signal pins, 1 x 3V3 power signal, 1 x VUSB power signal, and 3 x GND signals.

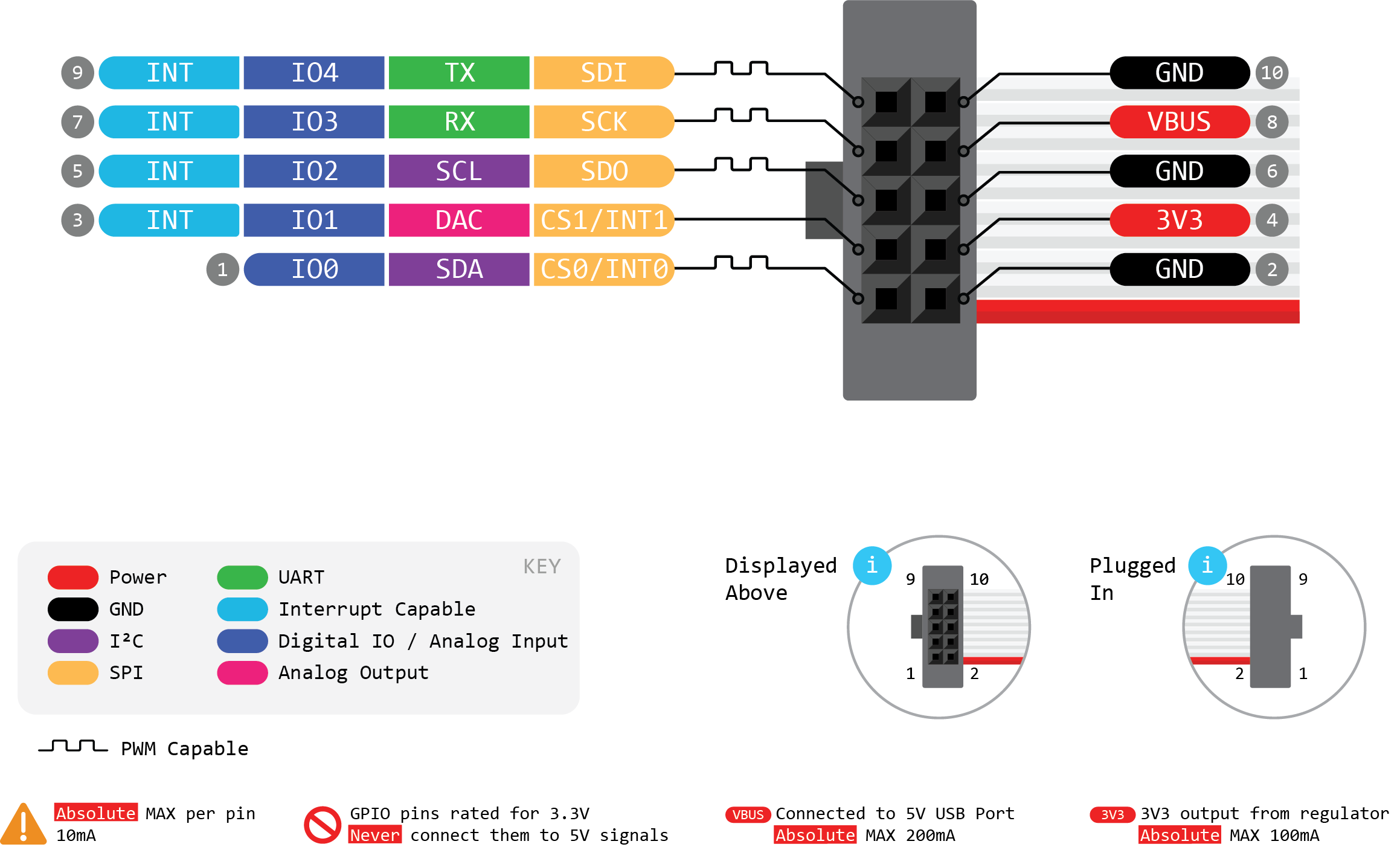

The figure below shows the connector pinout and channel functions:

Binho Nova pinout diagram,

Now you're ready to begin interacting with the device. See the following QuickStart Guides in this section to learn how to interact with the device via your preferred interface.
