Binho Nova
Multi-protocol (I2C, SPI, 1-WIRE), single-port host adapter
Last updated
Multi-protocol (I2C, SPI, 1-WIRE), single-port host adapter
Last updated

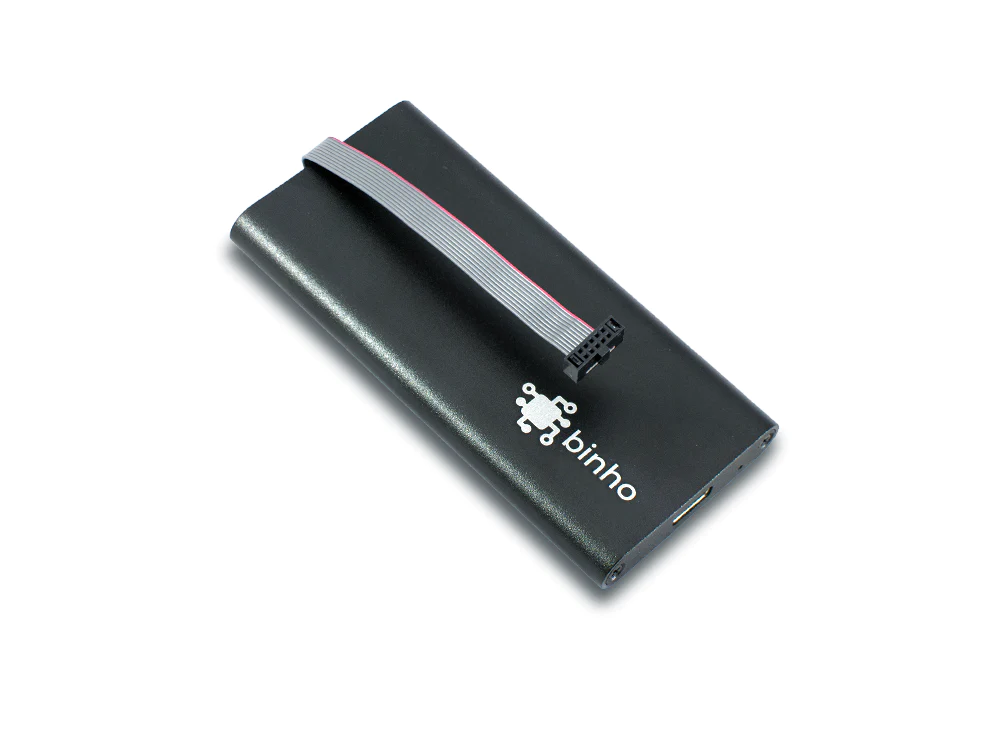

The Binho Nova Multi-Protocol USB Host Adapter allows one to interface their computer directly to hardware circuits. This device is powered by the USB connection to the host PC and is also able to provide downstream power to test circuits.
The Binho Nova features 5 signal pins, 1 x 3v3 pin, 1 x VUSB pin, and 3 x GND pins on its 10pin wire harness. The wire harness terminates with a female 1.27mm 2x5 IDC connector. In IO Mode, the 5 signal pins can be used for varying functions such as Digital Input, Digital Output, PWM Output, Digital Interrupt (on rising edge, falling edge, or change), Analog Input, or Analog Output.
Additionally, the host adapter is able to utilize these pins to communicate on several digital buses: I2C, SPI, UART, (Dallas)1-Wire, and (Atmel) Single-Wire Interface. While in these modes of operation, remaining available pins can be assigned to other related or unrelated purposes such as gpio, interrupts, chip selects, PWM signals, or analog input or outputs.
The Binho Nova is ideal for manual testing during firmware development and debugging as well as a perfect way to automate hardware testing and validation. A common use-case of this product in production environments is for EEPROM/Flash Memory programming along with functional testing activities.
Firmware Development
Proof of Concept Development
System Debugging
Automated Hardware/Firmware Testing
EEPROM Programming
FLASH Programming
FRAM Programming
Support for SPI @ 12MHz max clock
Support for I2C @ 3.4MHz max clock
Support for UART @ 1000000 max baud
Support for Dallas 1-Wire
Support for Atmel Single-Wire Interface
Provides 3v3 and VUSB power rails
1 x DAC Output, 5 x ADC Inputs
GPIO / Interrupt / PWM Support
Programmable RGB Status LED
Field-Upgradeable Device Firmware
Cross-platform Support for Windows, Mac, Linux
Robust, low-profile Aluminum Enclosure
USB Type-C Connector
Power Source: USB Type-C
Voltage & Current: 200 mA @ 5 V
Max Power Consumption: 1 W
USB-C: Serves as both power input and data interface.
Wire harness which terminates with a female 1.27mm 2x5 IDC connector composed by 5 signal pins, 1 x 3v3 pin, 1 x VUSB pin, and 3 x GND pins.
Every Binho Nova Multi-Protocol USB Host Adapter comes with a convenient breadboard breakout adapter. Also included is a 1-foot USB Type-C to Type-A cable, all packed neatly in a soft-shell zippered case.
