QuickStart with GUI

Step #1: Download and Install the Binho Mission Control Software

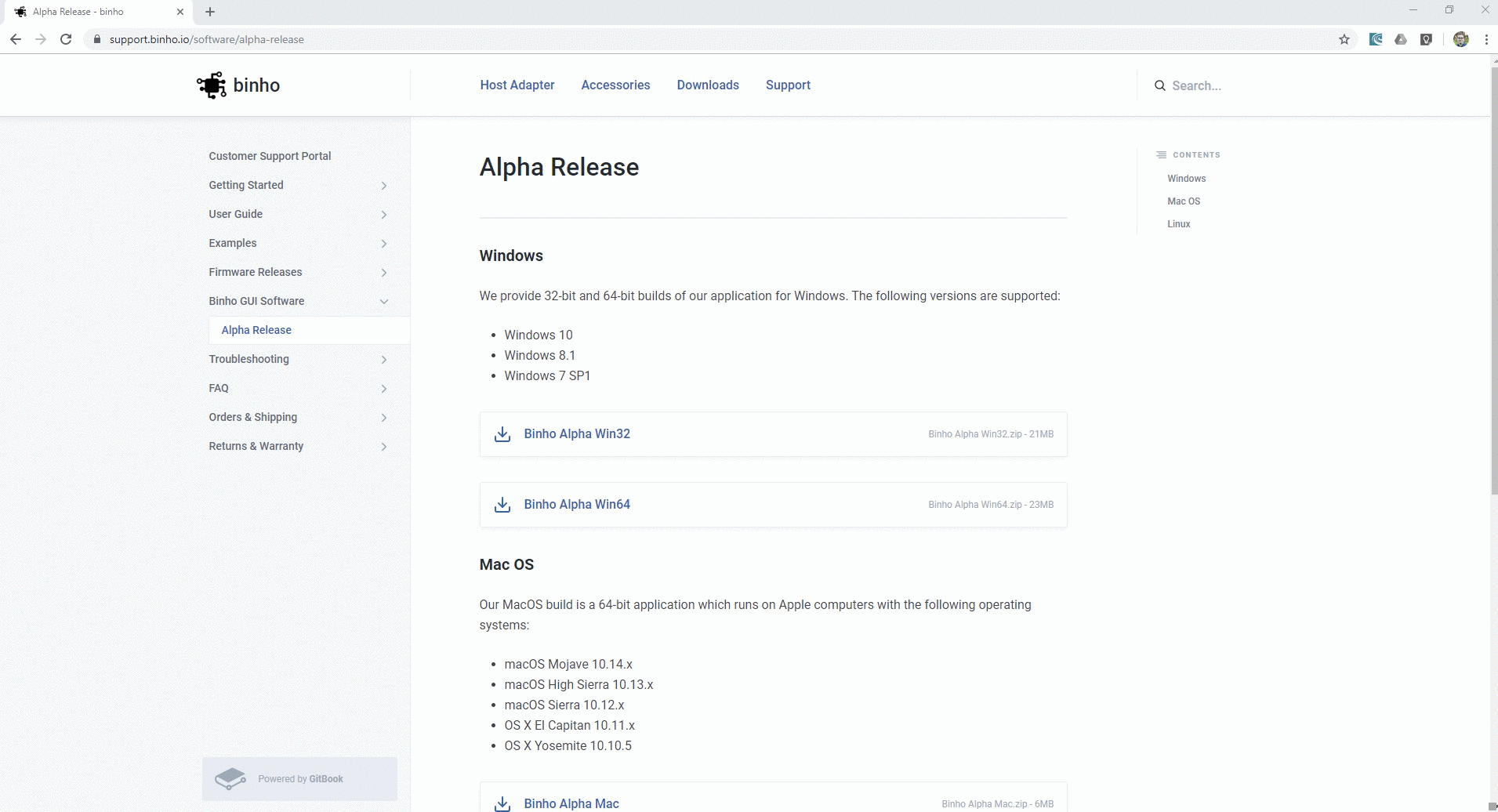

Our cross-platform software, called Mission Control, is available for Windows, Mac, and Linux and provides an easy-to-use GUI interface for your Binho Nova. Download the appropriate release for your operating system here:
V1.1.0 Release
Once the download completes, unzip the directory. The Windows 32bit and Windows 64bit releases are distributed with .exe installers, whereas Mac and Linux distributions can simply be unzipped and run.
Installing on Windows
The Windows Defender SmartScreen prompt is displayed when running the installer. Click "More Info" and then the "Run Anyway" button to continue. Our software releases are no codesigned, however we're still building our reputation within Microsoft SmartScreen so that eventually this warning will go away.
Here's what the process looks like on Mac:
If this is the first time that you're connecting to a virtual COM port on your Mac, you will need ensure your user account has the correct permissions. Please see the following support page if this is your first time:
MacOS Permissions
Here's what the process looks like on Ubuntu:
Unzip and Run on Ubuntu
Note that there are some nuances with permissions when running on Linux systems. Please see the follow support page for more details on setting the required permissions:
Linux Permissions
Step #2: Launch the Mission Control Software & Connect to the Device
Now it's time to launch the software. If you haven't done so already, connect the Binho Nova to you computer using the provided USB Cable. Once you've launched the application, the available devices will be displayed in a drop-down box at the top. Simply click the "Connect" button to connect to the selected host adapter. If no devices are shown in the list, go ahead and click the "Refresh" button to check again, perhaps it was still enumerating after plug-in when the software initially checked for devices.
Step #3: Set the Operation Mode
The device mode of operation is displayed in the bottom left corner of the main application window. The default mode of operation is IO, where all 5 pins can be used for any function from the IO tab of the software. Activating SPI or I2C modes of operation will assign the pins associated with those protocols to their protocol-specific function, and the remaining unused IO pins will still be available for use from the IO tab. Setting SPI or I2C mode of operation is done on the respective protocol tab as shown below.
Step #4: Interact
At this point, you're all set to start interacting with your device. For final step, please take a look at the pages below depending on which mode of operation is most interesting / applicable to your needs:
IO in Mission Control
SPI in Mission Control
I2C in Mission Control
UART in Mission Control
We're working on adding GUI support for 1-Wire and SWI protocols, as well as implementing advanced features to aid in automated testing -- all this and more coming soon!
